Specifications
1) 110CC Handicapped tricycle for disabled people
2) Three wheeler 350-10 disc break ;
3) 1 year quality warranty
Superior Advantage of This 110cc Handicapped tricycle
1) Handicapped tricycle fixed with 110CC Brand Air cooling Engine ;
2) Three wheeler 350-10 wheeler , aluminum wheel ,Front and Rear disc Break ;
3) Handicapped tricycle Max speed 60km/h ;
4) Handicapped tricycle bye One year quality warranty
Technical Specification of this 110CC Handicapped tricycle
| Product Details: 110CC Handicaped tricycle | |
| Dimensions(mm) | 1970 × 800 × 1100 |
| Engine Type | Four stroke engines with single cylinder and air-cooled |
| Displacement(ml) | 107 |
| Bore & Stroke(mm) | 52.4 × 49.5 |
| Max Power( Kw(r/min)) | 5.2 / 8500 |
| Wheel Base(mm) | 1250 |
| Wheel Span(mm) | 690 |
| Complete Vehicle Kerb Mass(kg) | 150 |
| Maximum loading(kg) | 300 |
| Tyre | Front 350-10 Rear 350-10 |
| Starter | Electric / Kick |
| Model of Brake | Disc / Disc |
| Maximum speed(km/h) | 70 |
| Transmission | By chain |
| Packing Details | SKD,CARTON AND IRON BRACE INSIDE |
| Quantity | 57 pcs / HQ |
Details Photo of this 110CC Handicapped tricycle

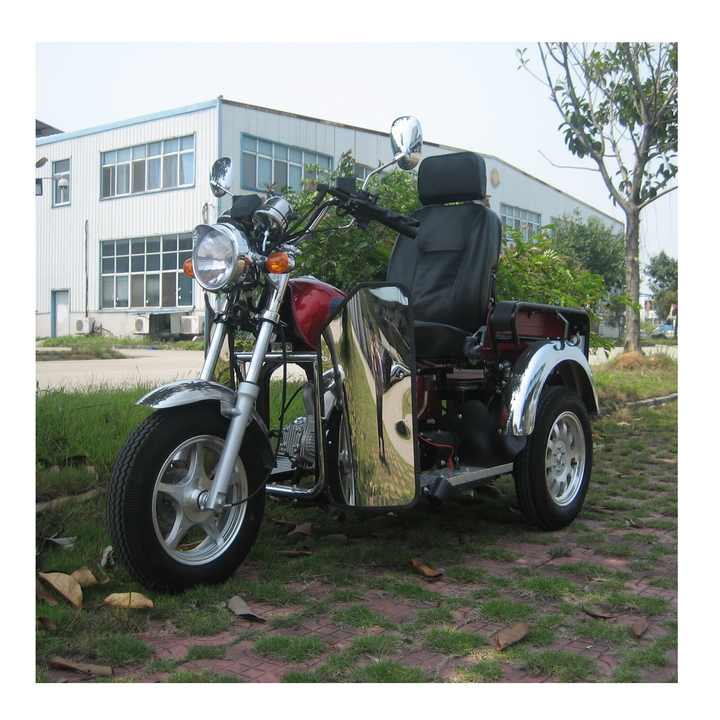

( Handicapped tricycle fixe with 110CC )
( Handicapped tricycle fixed with 350-12 Anumium wheel )

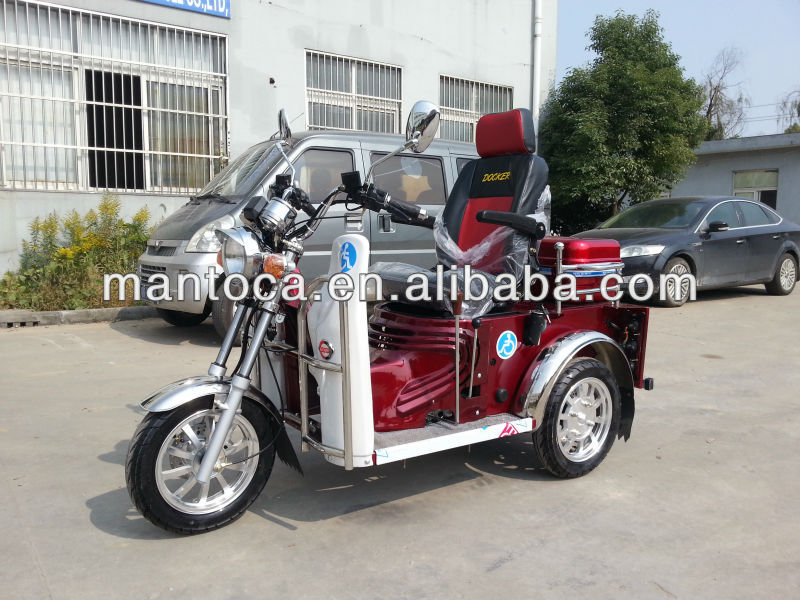

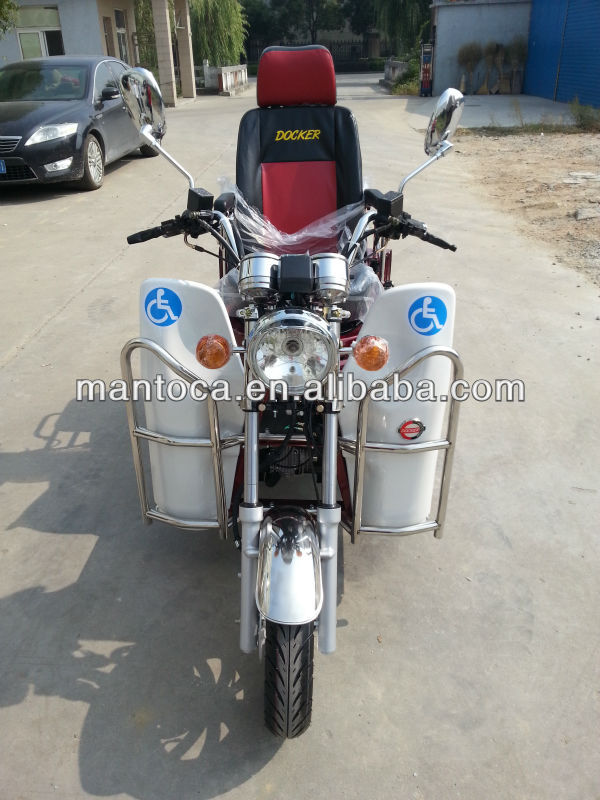

( Handicapped tricycle for disabled people and the aged )
Handicapped tricycle packaged and loading in the Container
